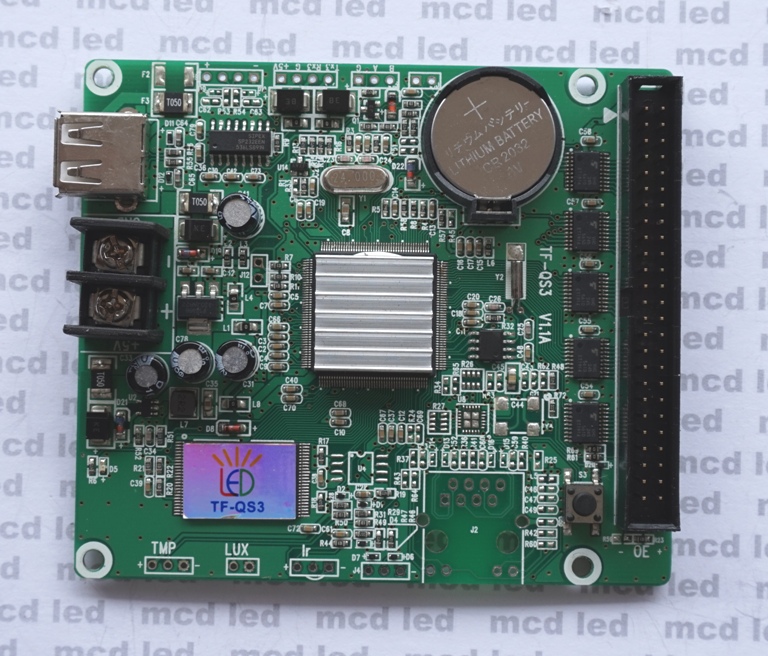

| Control card | TF-QS3 |
| Function | Arbitrary partition,Multi partition arbitrary superposition,Program background animation,,Streamer word,Text strokes,U-disk Smart scan pixels,support coss screen. |
| Interface | U-disk |
| U-disk function | support U-disk uopdate program,U-disk adjust brightness,U-disk set the screen parameter. |
| Control range | full color 160*128 320*64 |
| HUB board | 1 50pin |
| Scan type | Support 1/16,1/8,1/4,1/2,static,support smart settings,U-disk smart scan. |
| Memory | 128M |
| Program | Maximum support 200 programs,support 16 partitions play,Partitions can overlap16,eahc widow support 200 texts. |
| Effect | 45 kinds of action |
| Colorful border | support many Colorful borders,support picture user-defined borders. |
| content type | Video,Text,flash,picture,animation,timing,count down,clock,Temperature,humidity. |
| Play type | program support playing by turns,by timing,by date,by week,by time quantum. |
| Time display | Clock,time,time with seconds,support adjusting font size,can set time zone,support many different time zones play at the same time. |
| Communication | U-disk update |
| Brightness adjust | 16 levels brightness.support Manual adjustment of brightness,support 6 period timing adjust brigtness,if you add a sensor, Auto adjust brightness. |
| Screen switch | manual screen switch,support 2 period timing screen swich. |
| Test Key | have test key on board,can Switch test mode. |
| Expand function | Temperature sensor,temperature and humidity sensor,brightness sensor. |
| Electrical parameters | +5V DC(4.5V~5.5V),working ≤3W |
| working temperature | -30oC~70oC |
| Physical size | 96mm×84mm Locating hole::78mm x 78mm |
