Model |

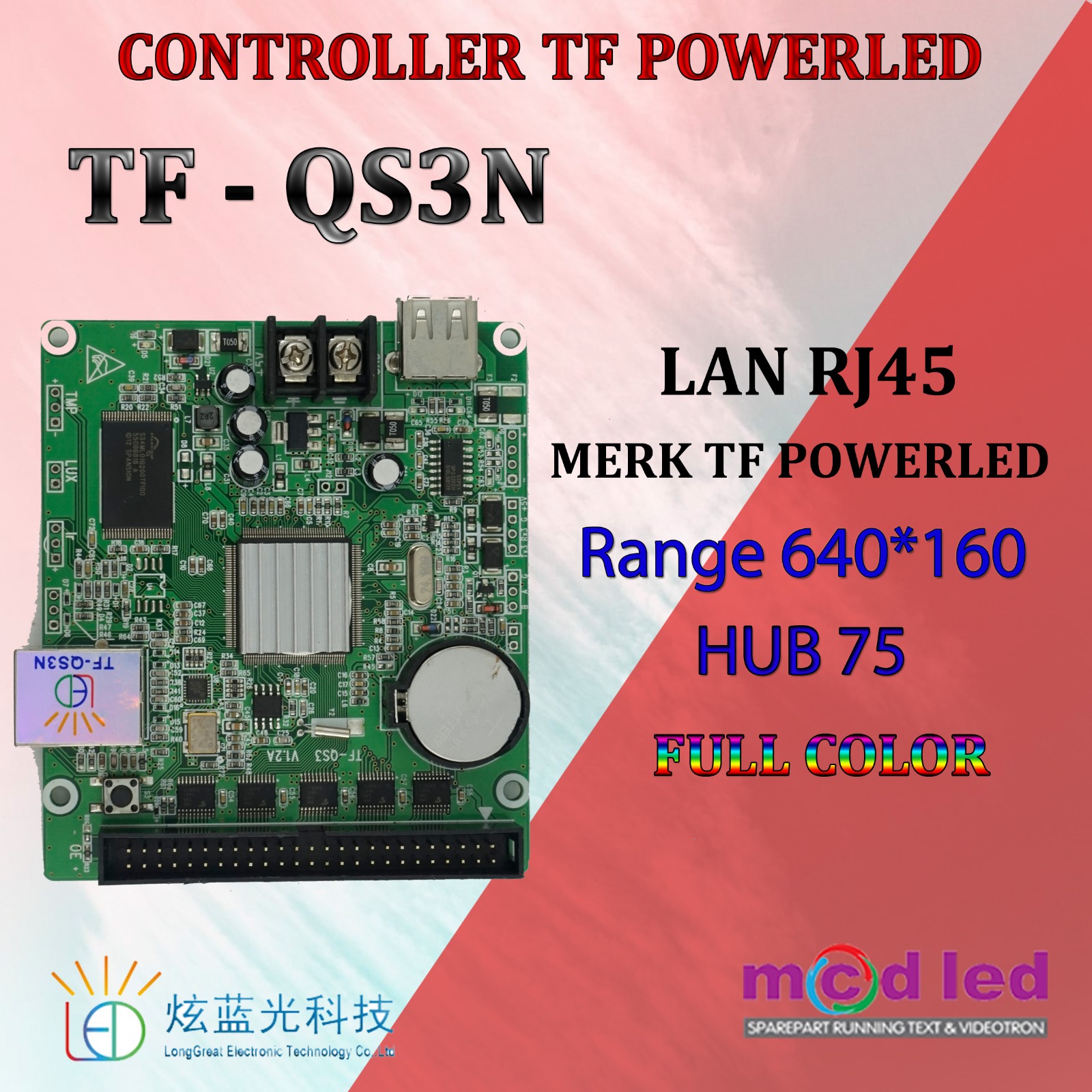

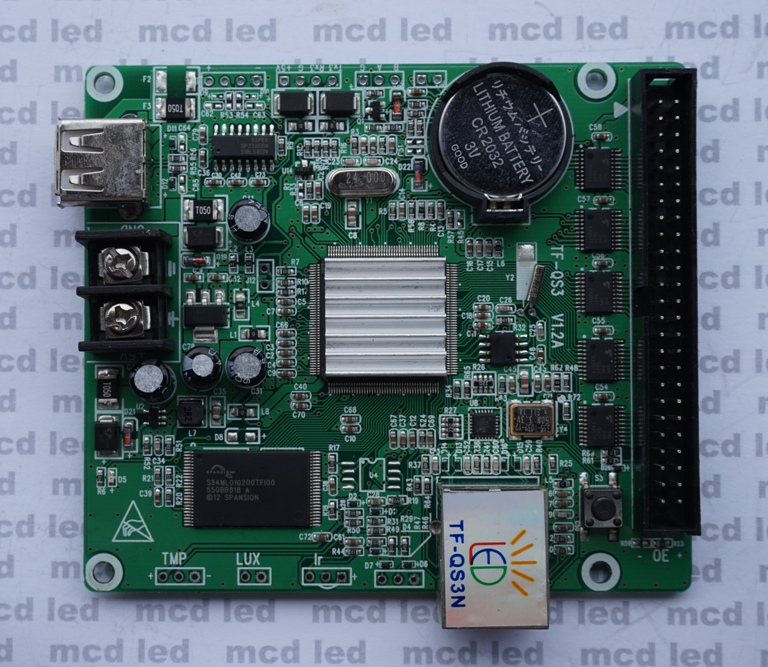

TF-QS3N |
|
Function |
Arbitrary partition,Multi partition arbitrary superposition,Program background animation,,Streamer word,Text strokes,U-disk Smart scan pixels,support cross screen. Support infrared remote function |
|
Interface |
Gigabit Ethernet + U-disk |
|
U-disk function |
support U-disk uopdate program,U-disk adjust brightness,U-disk set the screen parameter. |
|
Control range |
Full color 160×128 320×64,Width max 640,Height max 160 |
|
HUB board |
1 50pin |
|
Scan type |
Support 1/32,1/16,1/8,1/4,1/2,static,support smart settings,U-disk smart scan. |
|
Memory |
128M |
|
Program QTY |
Maximum support 200 programs,support 16 partitions play at the same time,Partitions can overlap,each widow support 200 texts |
|
Effect |
45 kinds of different actions. |
|
Colorful border |
support a lot Colorful borders,support picture user-defined borders. |
|
Content type |
Video,Text,flash,picture,animation,timing,count down,count up,clock,Temperature,humidity. |
|
Play type |
program support playing by turns,by timing,by date,by week,by time quantum |
|
Time display |
Clock,time,time with seconds,support adjusting font size,can set time zone,support many different time zones play at the same time. |
|
Communication |
lanport communication.Support network automatically find10M/100M/1000Madaptive, support U disk update program |
|
Brightness adjust |
16 levels brightness.support Manual adjustment of brightness,support 6 period timing adjust brigtness,if you add a sensor, Auto adjust brightness. |
|
Screen switch |
manual screen switch,support 2 period timing screen swich. |
|
Test Key |
have test key on board,can Switch test mode. |
|
Expand function |
Temperature sensor,temperature and humidity sensor,brightness sensor. |
|
Electrical parameters |
+5V DC(4.5V~5.5V),working ≤3W |
|
Working temperature |
-30℃～70℃ |
|
Physical size |
96mm×84mm Locating hole：78mm x78mm |
