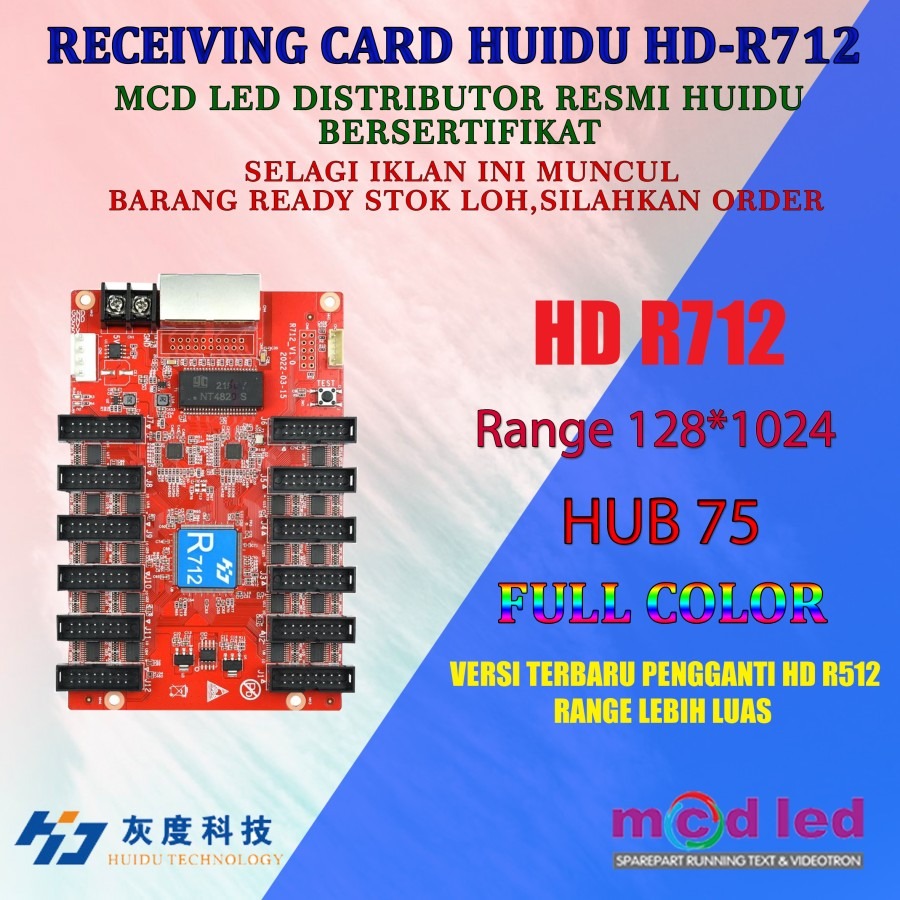

RECEIVING CARD HD HUIDU R712 SPECIFICATION

– With sending card:
Dual-mode sending box, Asynchronous sending card,
Synchronous sending card, Video processor of VP series.
– Module type:
Compatible with all common IC module, supported most
PWM IC module.
– Scan mode:
Supports any scanning method from static to 1/128 scan
– Communication:
method Gigabit Ethernet
– Control range:
Maximum loading capacity: 262,144 pixels (512*512)
Recommended loading capacity: conventional chip 128*1024 pixels, PWM chip 256*1024 pixels
Note: The actual loading capacity is related to the number of HUB ports/module resolution.
– Multi-card:
connection Receiving card can be put in any sequence
– Gray scale:
256~65536
– Smart setting:
A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
– Test functions:
Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
– Communication distance:
Super Cat5, Cat6 network cable within 80 meters
– Port:
DC 5V Power*2, Gbps Ethernet port*2, HUB75E*12
– Input voltage:
4.0V-5.5V
– Power:
5W
