| Model
|

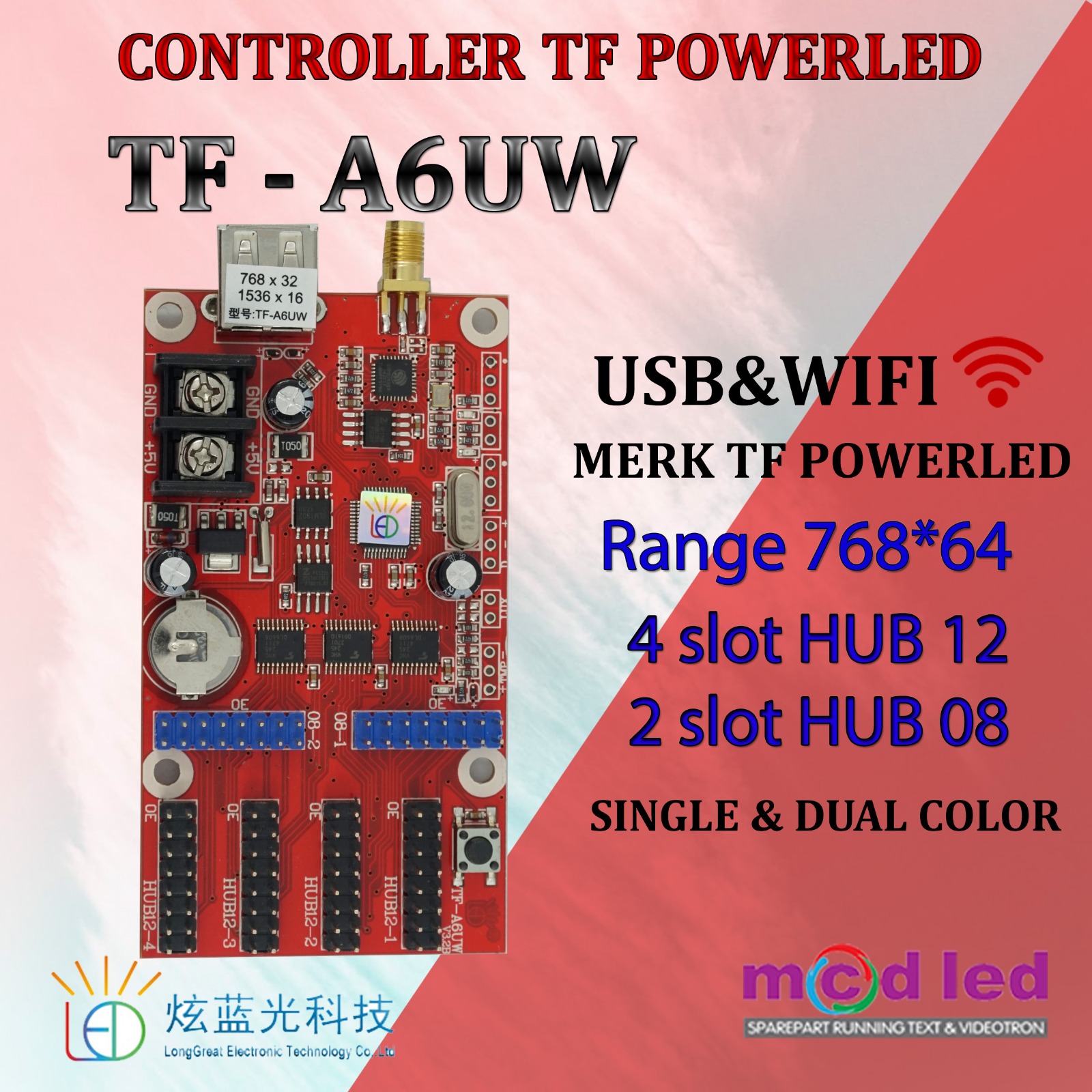

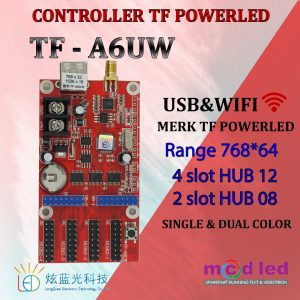

TF-A6UW
|
| Function introduction |
More arbitrary division,dazzle colour border area,WIFI communication |
| Usage |
indoor/outdoor |
| Pixel |
Single colour 768×32;384×64;Double colour 384×32;192×64 |
| USB fuction |
USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB. |
| Ports |
two 08 port; four 12 ports |
| Scanning mode |
support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module. |
| Storage |
2M |
| Program number |
Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory） |
| Display |
rain,fountain,scroll and much more |
| Border |
support many Color border,Picture border |
| Flash format |
support GIF,SWF |
| Image format |
support BMP,JPG,GIF,WMF,ICO |
| Communication way |
Stand-alone,LAN,Intenet remote cluster management |
| Brightness |
Level 16 highlighted,support manual |
| screen switch |
manual |
| Test buttons |
Test buttons on-board,can switch over to test mode. |
| Extension function: |
Temperature sensor/Temperature&humidity sensor,Monochrome expand height,Through to 75 full-color interface. |
| Electrical parameters |
+5V DC(5.0V～6V),Power consumption<3W |
| Working temperature |
-30℃～70℃ |
| Size |
56mm*88mm |
